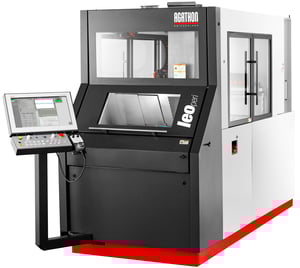

Leo Peri – Agathons smallest high-precision 4-axis grinding center for machining the periphery of indexable inserts.
Basic machine – overview:
● Compact design with excellent accessibility and rooftop mounting for peripherals

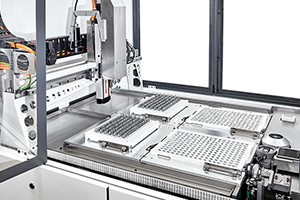

● Dynamic, fully integrated 3-axis linear handling
● Support for 4 up to 6 pallets
● Direct drives with optimized performance for the X, Y and C axes
● In-process dressing suitable for grinding a wide range of materials
● Compact, fully enclosed grinding area
● Grinding wheel diameter 250 mm
● Tools, operation and programming are largely compatible with the other Agathon machines
Options (selection) – more to chose from:
● Graphical creation of programs for ISO indexable inserts (AGP-Iso)
● 2D force measurement system for normal and tangential forces for the process definition, optimization and control
● Vision system for parts alignment and spot recognition
● Extensive possibilities for Connectivity and Data Management
Highest productivity per m2
● Very small footprint of approx. 4 m2
● Access required from 3 sides only; alternative machine installations (flush against wall, back to back)
● Prepared for rooftop mounting of all peripherals
● Full possibilities to integrate fire extinguishing system
● All connections of the machine are centralized
